Pellet Master
The industry leading bio pellet reactor.
The perfect design, ease of installation, true versatility, and near zero maintenance!
The Pellet Master is the original & industry leading bio pellet reactor.
Near zero maintenance

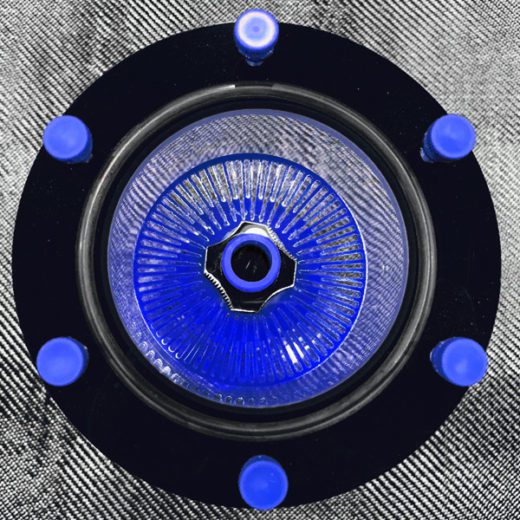

Our highly engineered laser cut acrylic baffle keeps all bio pellets within the reactor's chamber.
This eliminates the need for the typical sponge that will eventually clog and need to be replaced.

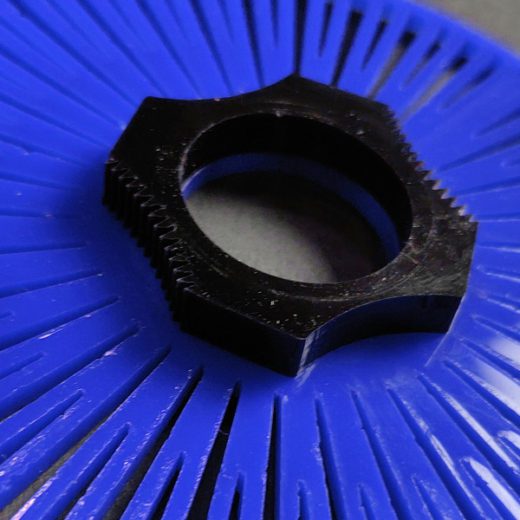

It's grip allows easy, full access to the reaction chamber for fast maintenance and bio pellet replacement.

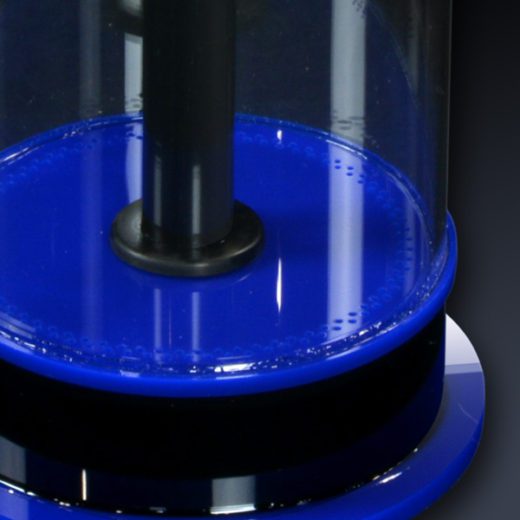

Bashsea's pressure plate
Our proprietary designed pressure plate evenly tumbles every type of bio pellet to perfection without the need of higher water flows.
This negates the need for the recirculating design.
Additional Features
Can be used internally or externally
True O-Ring seals
Precision CNC key hole flanges
For salt or fresh water environments
Commercial grade durability & craftsmanship
Superior quality build materials
Pellet Master
PM I
Blu
Red
White
2/4
Top
Aproximate Scale
zoom
PM I Tech Specs
|
Dimensions
Length x Width x Height
|
|
|---|---|
| Product Dimensions |
6" x 6" x 9.25"
( 15.24cm x 15.24cm x 23.5cm )
|
| Packaging Dimensions |
8" x 8" x 12"
( 20.32cm x 20.32cm x 30.48cm )
|
|
Weight
|
|
| Product Weight |
2 lb
( 0.91 kg )
|
| Packaging Weight |
4 lb
( 1.81 kg )
|
|
Properties
|
|
| Chamber Dimensions (Diam x H) |
4" x 7.5"
( 10.16cm x 19.05cm )
|
| Bio Pellet Media Capacity | 300 mL |
| Water Input Diameter (Hose Barb) |
.5"
( 1.27cm )
|
| Water Output Diameter (Hose Barb) |
.5"
( 1.27cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|
| Flow Rate Min |
150 gal / hr
( 567.81 L / hr )
|
| Flow Rate Max |
250 gal / hr
( 946.35 L / hr )
|
| Aquarium Min Volume |
50 gal
( 189.27 L )
|
| Aquarium Max Volume |
100 gal
( 378.54 L )
|
| Water Pump | Sicce 1.0 ( or equivalent ) |
| Bio Pellet Media | Dr Tim's NP-Active Pearls ( or equivalent ) |
Pellet Master
PM II
Blu
Red
White
2/4
Top
Aproximate Scale
zoom
PM II Tech Specs
|
Dimensions
Length x Width x Height
|
|
|---|---|
| Product Dimensions |
6" x 6" x 13"
( 15.24cm x 15.24cm x 33.02cm )
|
| Packaging Dimensions |
8" x 8" x 15"
( 20.32cm x 20.32cm x 38.1cm )
|
|
Weight
|
|
| Product Weight |
3 lb
( 1.36 kg )
|
| Packaging Weight |
5 lb
( 2.27 kg )
|
|
Properties
|
|
| Chamber Dimensions (Diam x H) |
4" x 10.5"
( 10.16cm x 26.67cm )
|
| Bio Pellet Media Capacity | 450 mL |
| Water Input Diameter (Hose Barb) |
.5"
( 1.27cm )
|
| Water Output Diameter (Hose Barb) |
.5"
( 1.27cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|
| Flow Rate Min |
200 gal / hr
( 757.08 L / hr )
|
| Flow Rate Max |
300 gal / hr
( 1135.62 L / hr )
|
| Aquarium Min Volume |
100 gal
( 378.54 L )
|
| Aquarium Max Volume |
200 gal
( 757.08 L )
|
| Water Pump | Sicce 1.0, Sicce 1.5 ( or equivalent ) |
| Bio Pellet Media | Dr Tim's NP-Active Pearls ( or equivalent ) |
Pellet Master
PM III
Blu
Red
White
2/4
Top
Aproximate Scale
zoom
PM III Tech Specs
|
Dimensions
Length x Width x Height
|
|
|---|---|
| Product Dimensions |
8.5" x 8.5" x 15.5"
( 21.59cm x 21.59cm x 39.37cm )
|
| Packaging Dimensions |
13" x 13" x 21"
( 33.02cm x 33.02cm x 53.34cm )
|
|
Weight
|
|
| Product Weight |
4 lb
( 1.81 kg )
|
| Packaging Weight |
6 lb
( 2.72 kg )
|
|
Properties
|
|
| Chamber Dimensions (Diam x H) |
6" x 11.75"
( 15.24cm x 29.85cm )
|
| Bio Pellet Media Capacity | 900 mL |
| Water Input Diameter (Hose Barb) |
.75"
( 1.91cm )
|
| Water Output Diameter (Hose Barb) |
.75"
( 1.91cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|
| Flow Rate Min |
350 gal / hr
( 1324.89 L / hr )
|
| Flow Rate Max |
600 gal / hr
( 2271.25 L / hr )
|
| Aquarium Min Volume |
300 gal
( 1135.62 L )
|
| Aquarium Max Volume |
500 gal
( 1892.71 L )
|
| Water Pump | Sicce 2.0, Sicce 3.0 ( or equivalent ) |
| Bio Pellet Media | Dr Tim's NP-Active Pearls ( or equivalent ) |
COMPARE
Pellet Master
MODELS
| Pellet Master | PM I | PM II | PM III |
|---|---|---|---|
|
Dimensions
Length x Width x Height
|
|||
| Product Dimensions |
6" x 6" x 9.25"
( 15.24cm x 15.24cm x 23.5cm )
|
6" x 6" x 13"
( 15.24cm x 15.24cm x 33.02cm )
|
8.5" x 8.5" x 15.5"
( 21.59cm x 21.59cm x 39.37cm )
|
| Packaging Dimensions |
8" x 8" x 12"
( 20.32cm x 20.32cm x 30.48cm )
|
8" x 8" x 15"
( 20.32cm x 20.32cm x 38.1cm )
|
13" x 13" x 21"
( 33.02cm x 33.02cm x 53.34cm )
|
|
Weight
|
|||
| Product Weight |
2 lb
( 0.91 kg )
|
3 lb
( 1.36 kg )
|
4 lb
( 1.81 kg )
|
| Packaging Weight |
4 lb
( 1.81 kg )
|
5 lb
( 2.27 kg )
|
6 lb
( 2.72 kg )
|
|
Properties
|
|||
| Chamber Dimensions (Diam x H) |
4" x 7.5"
( 10.16cm x 19.05cm )
|
4" x 10.5"
( 10.16cm x 26.67cm )
|
6" x 11.75"
( 15.24cm x 29.85cm )
|
| Bio Pellet Media Capacity | 300 mL | 450 mL | 900 mL |
| Water Input Diameter (Hose Barb) |
.5"
( 1.27cm )
|
.5"
( 1.27cm )
|
.75"
( 1.91cm )
|
| Water Output Diameter (Hose Barb) |
.5"
( 1.27cm )
|
.5"
( 1.27cm )
|
.75"
( 1.91cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|||
| Flow Rate Min |
150 gal / hr
( 567.81 L / hr )
|
200 gal / hr
( 757.08 L / hr )
|
350 gal / hr
( 1324.89 L / hr )
|
| Flow Rate Max |
250 gal / hr
( 946.35 L / hr )
|
300 gal / hr
( 1135.62 L / hr )
|
600 gal / hr
( 2271.25 L / hr )
|
| Aquarium Min Volume |
50 gal
( 189.27 L )
|
100 gal
( 378.54 L )
|
300 gal
( 1135.62 L )
|
| Aquarium Max Volume |
100 gal
( 378.54 L )
|
200 gal
( 757.08 L )
|
500 gal
( 1892.71 L )
|
| Water Pump | Sicce 1.0 ( or equivalent ) | Sicce 1.0, Sicce 1.5 ( or equivalent ) | Sicce 2.0, Sicce 3.0 ( or equivalent ) |
| Bio Pellet Media | Dr Tim's NP-Active Pearls ( or equivalent ) | Dr Tim's NP-Active Pearls ( or equivalent ) | Dr Tim's NP-Active Pearls ( or equivalent ) |
