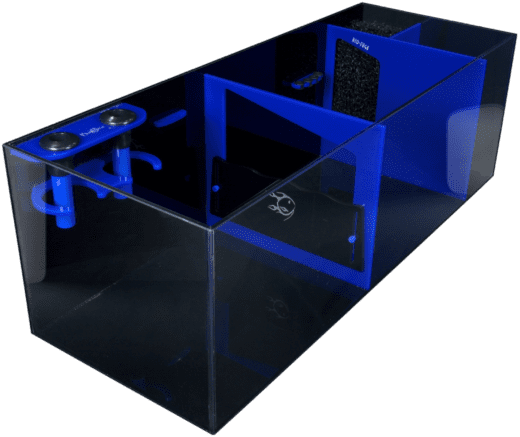

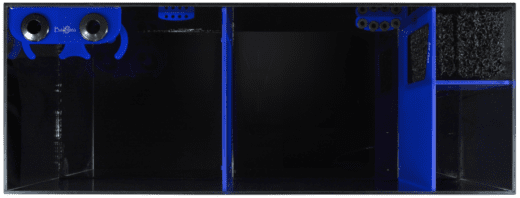

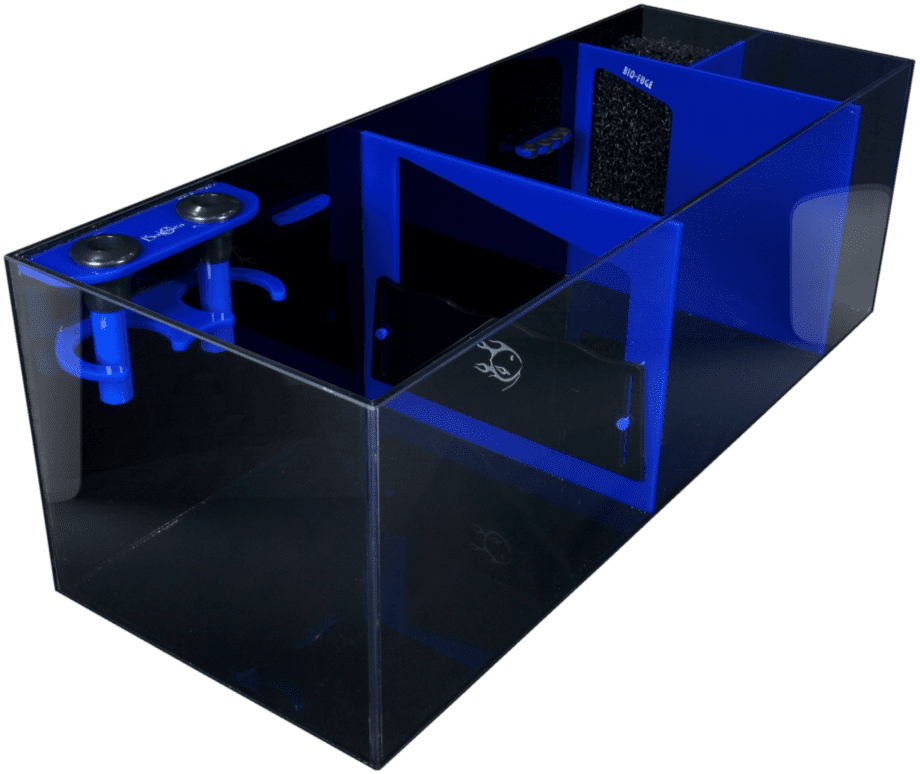

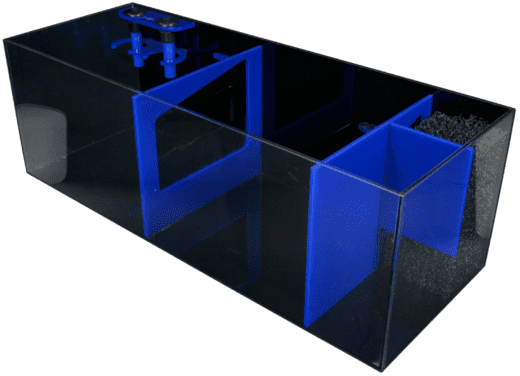

Bio-Fuge Sump 48-18-16

Bio-Fuge Sump 48-18-16

Rimless, simple, and budget-friendly fresh and salt water sump system with 3 sections, for aquariums up to 400 gallons.

Share

Dimensions

L x W x H
48 x 18 x 16 in
121.92 x 45.72 x 40.64 cm

48-18-16 Technical Specifications

Identity
Manufacturer Bashsea
Product Line Bio-Fuge Sumps
Product 48-18-16
Universal Product Code -
Available Styles Blue Black
Physical Properties
Dimensions (L x W x H)
48 x 18 x 16 in
121.92 x 45.72 x 40.64 cm
Weight
52 lb
23.59 kg
Physical Properties (with packaging)
Dimensions (L x W x H)
52 x 22 x 20 in
132.08 x 55.88 x 50.8 cm
Weight
60 lb
27.22 kg
Acrylic Thickness
Top -
Sides
.375 in
.95 cm
Baffles
.375 in
.95 cm
Bottom
.25 in
.64 cm
Properties
Cord Control -
Probe Holders 1
Drains
2 @ diameter of 1 in (2.54 cm)
Socks
2 @ diameter of 4 in (10.16 cm)
Dosing Inputs
1 group of 4 @ diameter of .3 in (.76 cm)
Sump Section 1
Dimensions (L x W)
20 x 17.25 in
50.8 x 43.82 cm
Adjustable Gate Yes
Min Water Height
5 in
12.7 cm
Max Water Height
9 in
22.86 cm
Sump Section 2
Dimensions (L x W)
19 x 17.25 in
48.26 x 43.82 cm
Adjustable Gate No
Min Water Height -
Max Water Height -
Sump Section 3
Dimensions (L x W)
10 x 7 in
25.4 x 17.78 cm
Adjustable Gate No
Min Water Height -
Max Water Height -

48-18-16 Datasheets

Product datasheets are print-friendly .PDF files that contain the technical specifications for the Bashsea product line.

Datasheet for the 48-18-16

Also available is the datasheet containing ALL Bio-Fuge Sump products.

Detailed Info & Features

This information applies to all Bio-Fuge Sump products.
