Media Chamber
The perfect multi-media aquarium reactor.
Largest media capacity in the industry.
Extra large design allows for high media volumes, while producing even flow to maximize water-media contact time.

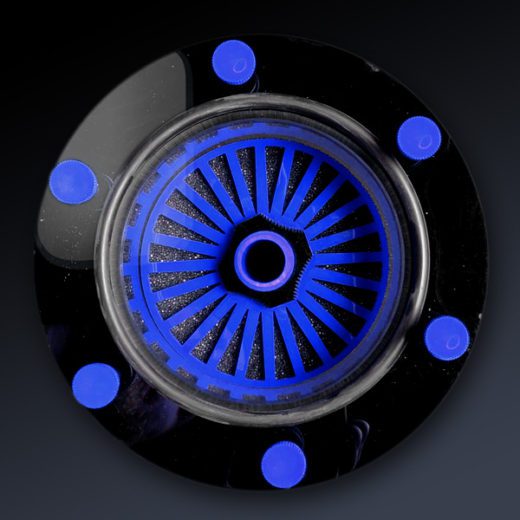

Evenly distributed media
Bashsea's proprietary laser cut water distribution plate eliminates channeling of media.
It's grip allows easy, full access to the reaction chamber for fast maintenance and media replacement.

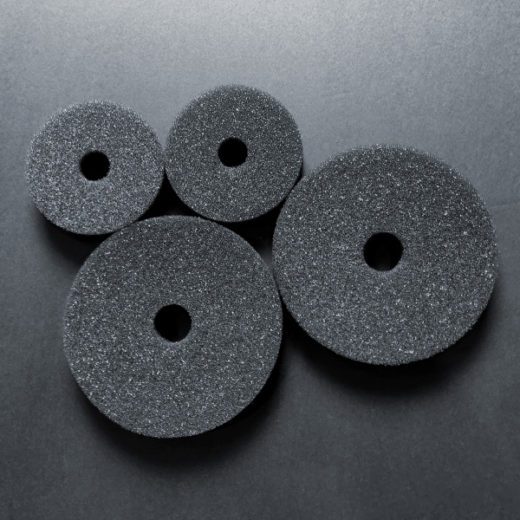

Maximum Flow Sponges
Our sponges provide the optimal water filter to water flow ratio.
These thick, heavy grade sponges are precisely water jet cut.
Media Compatible
Engineered to adapt to all major media types:
Carbon
GFO
Bio
Nitrate
Calcium
Additional Features
Can be used internally or externally
True O-Ring seals
Precision CNC key hole flanges
For salt or fresh water environments
Commercial grade durability & craftsmanship
Superior quality build materials
Media Chamber
4-12
Blu
Red
White
Front
Top
Aproximate Scale
zoom
4-12 Tech Specs
|
Dimensions
Length x Width x Height
|
|
|---|---|
| Product Dimensions |
6" x 6" x 13"
( 15.24cm x 15.24cm x 33.02cm )
|
| Packaging Dimensions |
8" x 8" x 15"
( 20.32cm x 20.32cm x 38.1cm )
|
|
Weight
|
|
| Product Weight |
2 lb
( 0.91 kg )
|
| Packaging Weight |
4 lb
( 1.81 kg )
|
|
Properties
|
|
| Chamber Dimensions (Diam x H) |
4" x 11.5"
( 10.16cm x 29.21cm )
|
| Water Capacity | |
| Media Capacity |
.57 gal
( 2.16 L )
|
| Water Input Diameter (Hose Barb) |
.5"
( 1.27cm )
|
| Water Output Diameter (Hose Barb) |
.5"
( 1.27cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|
| Flow Rate Min |
150 gal / hr
( 567.81 L / hr )
|
| Flow Rate Max |
250 gal / hr
( 946.35 L / hr )
|
| Aquarium Min Volume |
75 gal
( 283.91 L )
|
| Aquarium Max Volume |
150 gal
( 567.81 L )
|
| Water Pump | Sicce 1.0 ( or equivalent ) |
| Media | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) |
Media Chamber
4-18
Blu
Red
White
Front
Top
Aproximate Scale
zoom
4-18 Tech Specs
|
Dimensions
Length x Width x Height
|
|
|---|---|
| Product Dimensions |
6" x 6" x 19.25"
( 15.24cm x 15.24cm x 48.9cm )
|
| Packaging Dimensions |
8" x 8" x 22"
( 20.32cm x 20.32cm x 55.88cm )
|
|
Weight
|
|
| Product Weight |
3 lb
( 1.36 kg )
|
| Packaging Weight |
5 lb
( 2.27 kg )
|
|
Properties
|
|
| Chamber Dimensions (Diam x H) |
4" x 17.5"
( 10.16cm x 44.45cm )
|
| Water Capacity | |
| Media Capacity |
.86 gal
( 3.26 L )
|
| Water Input Diameter (Hose Barb) |
.5"
( 1.27cm )
|
| Water Output Diameter (Hose Barb) |
.5"
( 1.27cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|
| Flow Rate Min |
150 gal / hr
( 567.81 L / hr )
|
| Flow Rate Max |
300 gal / hr
( 1135.62 L / hr )
|
| Aquarium Min Volume |
125 gal
( 473.18 L )
|
| Aquarium Max Volume |
225 gal
( 851.72 L )
|
| Water Pump | Sicce 1.0 ( or equivalent ) |
| Media | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) |
Media Chamber
6-12
Blu
Red
White
Front
Top
Aproximate Scale
zoom
6-12 Tech Specs
|
Dimensions
Length x Width x Height
|
|
|---|---|
| Product Dimensions |
8.5" x 8.5" x 13"
( 21.59cm x 21.59cm x 33.02cm )
|
| Packaging Dimensions |
13" x 13" x 20.5"
( 33.02cm x 33.02cm x 52.07cm )
|
|
Weight
|
|
| Product Weight |
3 lb
( 1.36 kg )
|
| Packaging Weight |
5 lb
( 2.27 kg )
|
|
Properties
|
|
| Chamber Dimensions (Diam x H) |
6" x 11.5"
( 15.24cm x 29.21cm )
|
| Water Capacity | |
| Media Capacity |
1.35 gal
( 5.11 L )
|
| Water Input Diameter (Hose Barb) |
.75"
( 1.91cm )
|
| Water Output Diameter (Hose Barb) |
.75"
( 1.91cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|
| Flow Rate Min |
200 gal / hr
( 757.08 L / hr )
|
| Flow Rate Max |
500 gal / hr
( 1892.71 L / hr )
|
| Aquarium Min Volume |
200 gal
( 757.08 L )
|
| Aquarium Max Volume |
300 gal
( 1135.62 L )
|
| Water Pump | Sicce 1.5, Sicce 2.0 ( or equivalent ) |
| Media | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) |
Media Chamber
6-18
Blu
Red
White
Front
Top
Aproximate Scale
zoom
6-18 Tech Specs
|
Dimensions
Length x Width x Height
|
|
|---|---|
| Product Dimensions |
8.5" x 8.5" x 19.25"
( 21.59cm x 21.59cm x 48.9cm )
|
| Packaging Dimensions |
13" x 13" x 26"
( 33.02cm x 33.02cm x 66.04cm )
|
|
Weight
|
|
| Product Weight |
4 lb
( 1.81 kg )
|
| Packaging Weight |
6 lb
( 2.72 kg )
|
|
Properties
|
|
| Chamber Dimensions (Diam x H) |
6" x 17.5"
( 15.24cm x 44.45cm )
|
| Water Capacity | |
| Media Capacity |
2 gal
( 7.57 L )
|
| Water Input Diameter (Hose Barb) |
.75"
( 1.91cm )
|
| Water Output Diameter (Hose Barb) |
.75"
( 1.91cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
|
| Flow Rate Min |
250 gal / hr
( 946.35 L / hr )
|
| Flow Rate Max |
600 gal / hr
( 2271.25 L / hr )
|
| Aquarium Min Volume |
300 gal
( 1135.62 L )
|
| Aquarium Max Volume |
500 gal
( 1892.71 L )
|
| Water Pump | Sicce 1.5, Sicce 2.0 ( or equivalent ) |
| Media | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) |
COMPARE
Media Chamber
MODELS
| Media Chamber | 4-12 | 4-18 | 6-12 | 6-18 |
|---|---|---|---|---|
|
Dimensions
Length x Width x Height
|
||||
| Product Dimensions |
6" x 6" x 13"
( 15.24cm x 15.24cm x 33.02cm )
|
6" x 6" x 19.25"
( 15.24cm x 15.24cm x 48.9cm )
|
8.5" x 8.5" x 13"
( 21.59cm x 21.59cm x 33.02cm )
|
8.5" x 8.5" x 19.25"
( 21.59cm x 21.59cm x 48.9cm )
|
| Packaging Dimensions |
8" x 8" x 15"
( 20.32cm x 20.32cm x 38.1cm )
|
8" x 8" x 22"
( 20.32cm x 20.32cm x 55.88cm )
|
13" x 13" x 20.5"
( 33.02cm x 33.02cm x 52.07cm )
|
13" x 13" x 26"
( 33.02cm x 33.02cm x 66.04cm )
|
|
Weight
|
||||
| Product Weight |
2 lb
( 0.91 kg )
|
3 lb
( 1.36 kg )
|
3 lb
( 1.36 kg )
|
4 lb
( 1.81 kg )
|
| Packaging Weight |
4 lb
( 1.81 kg )
|
5 lb
( 2.27 kg )
|
5 lb
( 2.27 kg )
|
6 lb
( 2.72 kg )
|
|
Properties
|
||||
| Chamber Dimensions (Diam x H) |
4" x 11.5"
( 10.16cm x 29.21cm )
|
4" x 17.5"
( 10.16cm x 44.45cm )
|
6" x 11.5"
( 15.24cm x 29.21cm )
|
6" x 17.5"
( 15.24cm x 44.45cm )
|
| Water Capacity | ||||
| Media Capacity |
.57 gal
( 2.16 L )
|
.86 gal
( 3.26 L )
|
1.35 gal
( 5.11 L )
|
2 gal
( 7.57 L )
|
| Water Input Diameter (Hose Barb) |
.5"
( 1.27cm )
|
.5"
( 1.27cm )
|
.75"
( 1.91cm )
|
.75"
( 1.91cm )
|
| Water Output Diameter (Hose Barb) |
.5"
( 1.27cm )
|
.5"
( 1.27cm )
|
.75"
( 1.91cm )
|
.75"
( 1.91cm )
|
|
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
|
||||
| Flow Rate Min |
150 gal / hr
( 567.81 L / hr )
|
150 gal / hr
( 567.81 L / hr )
|
200 gal / hr
( 757.08 L / hr )
|
250 gal / hr
( 946.35 L / hr )
|
| Flow Rate Max |
250 gal / hr
( 946.35 L / hr )
|
300 gal / hr
( 1135.62 L / hr )
|
500 gal / hr
( 1892.71 L / hr )
|
600 gal / hr
( 2271.25 L / hr )
|
| Aquarium Min Volume |
75 gal
( 283.91 L )
|
125 gal
( 473.18 L )
|
200 gal
( 757.08 L )
|
300 gal
( 1135.62 L )
|
| Aquarium Max Volume |
150 gal
( 567.81 L )
|
225 gal
( 851.72 L )
|
300 gal
( 1135.62 L )
|
500 gal
( 1892.71 L )
|
| Water Pump | Sicce 1.0 ( or equivalent ) | Sicce 1.0 ( or equivalent ) | Sicce 1.5, Sicce 2.0 ( or equivalent ) | Sicce 1.5, Sicce 2.0 ( or equivalent ) |
| Media | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) | Carbon, GFO, Bio, Nitrate, Calcium, etc. ( or equivalent ) |
