Bio Reactor

The ultimate maintenance free biological filter.

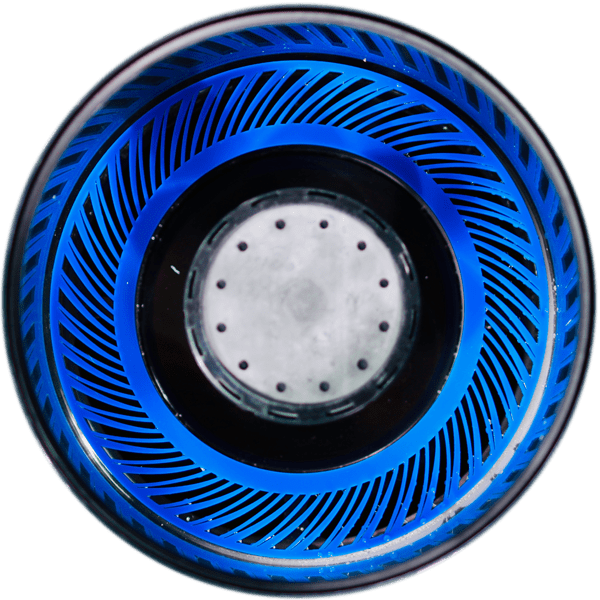

The perfect Bio-Motion

The Bio Reactor produces the perfect Bio-Motion: A counter-current flow design that maximizes media dwell time.

This results in rapid, instant, and continual waste removal making the Bio Reactor a 100% self cleaning system - so there's

ZERO maintenance required.

Bashsea "Bio-Mass" media

The Bio Reactor utilizes our proprietary "Bio-Mass" bio media specifically engineered to allow more waste removal in a smaller footprint.

Bio-Mass media has substantially more surface area than all other moving bed media in the industry.

Our vibrant opaque colors provide an optimal environment for beneficial bacteria colonies to flourish long-term, even in brightly lit systems.

when the

Bio-Motion and Bio-Mass

INTERACT

Our "Live Water" environment takes control...

1

Friction created by the interaction causes any old dead bacteria on the surface of the Bio-Mass media to be gently removed.

2

This makes space for new heavier feeding bacteria to rapidly colonize - instantly removing toxic ammonia and nitrite from the water column.

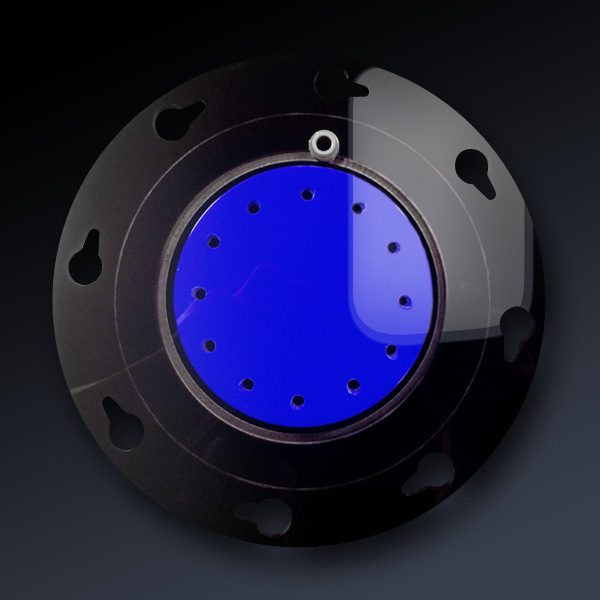

Injection spray plate

Specially engineered injection spray plate adds efficiency to Live Water environment.

Air line control

Air line control bracket helps to route and organize lines.

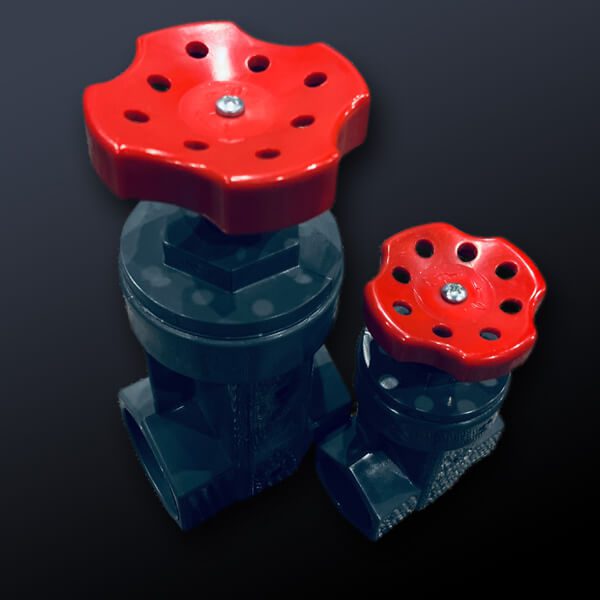

Complete Water Control

The included gate valve allows for complete, precise, and stable water level control.

In Use Advantages

Stabilizes PH levels
Stops aquarium "crashing syndrome"
Direct replacement for using live rock

Additional Features

Can be used internally or externally
True O-Ring seals
Precision CNC key hole flanges
For salt or fresh water environments
Commercial grade durability & craftsmanship
Superior quality build materials
Bio Reactor
6-18
Blu
Red
White
Front
2/4
Side
Aproximate Scale
zoom
Dimensions
Length x Width x Height
Product Dimensions
12.25" x 7.25" x 18"
( 31.12cm x 18.42cm x 45.72cm )
Packaging Dimensions
16" x 12" x 23"
( 40.64cm x 30.48cm x 58.42cm )
Weight
Product Weight
9 lb
( 4.08 kg )
Packaging Weight
12 lb
( 5.44 kg )
Properties
Base Dimensions (L x W)
7.25" x 12.25"
( 18.42cm x 31.12cm )
Chamber Diameter
6"
( 15.24cm )
Water Input Diameter
.5"
( 1.27cm )
Air Input Diameter (Hose Barb)
.125"
( 0.32cm )
Drain Diameter
1"
( 2.54cm )
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
Flow Rate Min
150 gal / hr
( 567.81 L / hr )
Flow Rate Max
250 gal / hr
( 946.35 L / hr )
Aquarium Min Volume
50 gal
( 189.27 L )
Aquarium Max Volume
75 gal
( 283.91 L )
Air Pump Tetra Deepwater AP-150 ( or equivalent )
Water Pump Sicce 1.5 ( or equivalent )
Bio Reactor
6-24
Blu
Red
White
Front
2/4
Side
Aproximate Scale
zoom
Dimensions
Length x Width x Height
Product Dimensions
12.25" x 7.25" x 24"
( 31.12cm x 18.42cm x 60.96cm )
Packaging Dimensions
16" x 12" x 29"
( 40.64cm x 30.48cm x 73.66cm )
Weight
Product Weight
11 lb
( 4.99 kg )
Packaging Weight
14 lb
( 6.35 kg )
Properties
Base Dimensions (L x W)
7.25" x 12.25"
( 18.42cm x 31.12cm )
Chamber Diameter
6"
( 15.24cm )
Water Input Diameter
.5"
( 1.27cm )
Air Input Diameter (Hose Barb)
.125"
( 0.32cm )
Drain Diameter
1"
( 2.54cm )
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
Flow Rate Min
250 gal / hr
( 946.35 L / hr )
Flow Rate Max
350 gal / hr
( 1324.89 L / hr )
Aquarium Min Volume
75 gal
( 283.91 L )
Aquarium Max Volume
150 gal
( 567.81 L )
Air Pump Tetra Deepwater AP-150 ( or equivalent )
Water Pump Sicce 2.0 ( or equivalent )
Bio Reactor
6-30
Blu
Red
White
Front
2/4
Side
Aproximate Scale
zoom
Dimensions
Length x Width x Height
Product Dimensions
12.25" x 7.25" x 30"
( 31.12cm x 18.42cm x 76.2cm )
Packaging Dimensions
16" x 12" x 35"
( 40.64cm x 30.48cm x 88.9cm )
Weight
Product Weight
13 lb
( 5.9 kg )
Packaging Weight
16 lb
( 7.26 kg )
Properties
Base Dimensions (L x W)
7.25" x 12.25"
( 18.42cm x 31.12cm )
Chamber Diameter
6"
( 15.24cm )
Water Input Diameter
.5"
( 1.27cm )
Air Input Diameter (Hose Barb)
.125"
( 0.32cm )
Drain Diameter
1"
( 2.54cm )
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
Flow Rate Min
300 gal / hr
( 1135.62 L / hr )
Flow Rate Max
400 gal / hr
( 1514.16 L / hr )
Aquarium Min Volume
125 gal
( 473.18 L )
Aquarium Max Volume
200 gal
( 757.08 L )
Air Pump Tetra Deepwater AP-150 ( or equivalent )
Water Pump Sicce 2.0 ( or equivalent )
Bio Reactor
8-18
Blu
Red
White
Front
2/4
Side
Aproximate Scale
zoom
Dimensions
Length x Width x Height
Product Dimensions
14.25" x 9" x 18"
( 36.2cm x 22.86cm x 45.72cm )
Packaging Dimensions
18" x 14" x 23"
( 45.72cm x 35.56cm x 58.42cm )
Weight
Product Weight
14 lb
( 6.35 kg )
Packaging Weight
17 lb
( 7.71 kg )
Properties
Base Dimensions (L x W)
9" x 14.25"
( 22.86cm x 36.2cm )
Chamber Diameter
8"
( 20.32cm )
Water Input Diameter
.75"
( 1.91cm )
Air Input Diameter (Hose Barb)
.125"
( 0.32cm )
Drain Diameter
1"
( 2.54cm )
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
Flow Rate Min
300 gal / hr
( 1135.62 L / hr )
Flow Rate Max
400 gal / hr
( 1514.16 L / hr )
Aquarium Min Volume
150 gal
( 567.81 L )
Aquarium Max Volume
225 gal
( 851.72 L )
Air Pump Tetra Deepwater AP-150 ( or equivalent )
Water Pump Sicce 2.0 ( or equivalent )
Bio Reactor
8-24
Blu
Red
White
Front
2/4
Side
Aproximate Scale
zoom
Dimensions
Length x Width x Height
Product Dimensions
14.25" x 9" x 24"
( 36.2cm x 22.86cm x 60.96cm )
Packaging Dimensions
18" x 14" x 29"
( 45.72cm x 35.56cm x 73.66cm )
Weight
Product Weight
15 lb
( 6.8 kg )
Packaging Weight
18 lb
( 8.16 kg )
Properties
Base Dimensions (L x W)
9" x 14.25"
( 22.86cm x 36.2cm )
Chamber Diameter
8"
( 20.32cm )
Water Input Diameter
.75"
( 1.91cm )
Air Input Diameter (Hose Barb)
.125"
( 0.32cm )
Drain Diameter
1"
( 2.54cm )
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
Flow Rate Min
400 gal / hr
( 1514.16 L / hr )
Flow Rate Max
550 gal / hr
( 2081.98 L / hr )
Aquarium Min Volume
200 gal
( 757.08 L )
Aquarium Max Volume
300 gal
( 1135.62 L )
Air Pump Tetra Deepwater AP-150 ( or equivalent )
Water Pump Sicce 2.0 ( or equivalent )
Bio Reactor
8-30
Blu
Red
White
Front
2/4
Side
Aproximate Scale
zoom
Dimensions
Length x Width x Height
Product Dimensions
14.25" x 9" x 30"
( 36.2cm x 22.86cm x 76.2cm )
Packaging Dimensions
18" x 14" x 35"
( 45.72cm x 35.56cm x 88.9cm )
Weight
Product Weight
17 lb
( 7.71 kg )
Packaging Weight
20 lb
( 9.07 kg )
Properties
Base Dimensions (L x W)
9" x 14.25"
( 22.86cm x 36.2cm )
Chamber Diameter
8"
( 20.32cm )
Water Input Diameter
.75"
( 1.91cm )
Air Input Diameter (Hose Barb)
.125"
( 0.32cm )
Drain Diameter
1"
( 2.54cm )
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
Flow Rate Min
500 gal / hr
( 1892.71 L / hr )
Flow Rate Max
700 gal / hr
( 2649.79 L / hr )
Aquarium Min Volume
350 gal
( 1324.89 L )
Aquarium Max Volume
500 gal
( 1892.71 L )
Air Pump Tetra Deepwater AP-300 ( or equivalent )
Water Pump Sicce 2.0, Sicce 3.0 ( or equivalent )
COMPARE
Bio Reactor
MODELS
Bio Reactor
6-18
6-24
6-30
8-18
8-24
8-30
Dimensions
Length x Width x Height
Product Dimensions
12.25" x 7.25" x 18"
( 31.12cm x 18.42cm x 45.72cm )
12.25" x 7.25" x 24"
( 31.12cm x 18.42cm x 60.96cm )
12.25" x 7.25" x 30"
( 31.12cm x 18.42cm x 76.2cm )
14.25" x 9" x 18"
( 36.2cm x 22.86cm x 45.72cm )
14.25" x 9" x 24"
( 36.2cm x 22.86cm x 60.96cm )
14.25" x 9" x 30"
( 36.2cm x 22.86cm x 76.2cm )
Packaging Dimensions
16" x 12" x 23"
( 40.64cm x 30.48cm x 58.42cm )
16" x 12" x 29"
( 40.64cm x 30.48cm x 73.66cm )
16" x 12" x 35"
( 40.64cm x 30.48cm x 88.9cm )
18" x 14" x 23"
( 45.72cm x 35.56cm x 58.42cm )
18" x 14" x 29"
( 45.72cm x 35.56cm x 73.66cm )
18" x 14" x 35"
( 45.72cm x 35.56cm x 88.9cm )
Weight
Product Weight
9 lb
( 4.08 kg )
11 lb
( 4.99 kg )
13 lb
( 5.9 kg )
14 lb
( 6.35 kg )
15 lb
( 6.8 kg )
17 lb
( 7.71 kg )
Packaging Weight
12 lb
( 5.44 kg )
14 lb
( 6.35 kg )
16 lb
( 7.26 kg )
17 lb
( 7.71 kg )
18 lb
( 8.16 kg )
20 lb
( 9.07 kg )
Properties
Base Dimensions (L x W)
7.25" x 12.25"
( 18.42cm x 31.12cm )
7.25" x 12.25"
( 18.42cm x 31.12cm )
7.25" x 12.25"
( 18.42cm x 31.12cm )
9" x 14.25"
( 22.86cm x 36.2cm )
9" x 14.25"
( 22.86cm x 36.2cm )
9" x 14.25"
( 22.86cm x 36.2cm )
Chamber Diameter
6"
( 15.24cm )
6"
( 15.24cm )
6"
( 15.24cm )
8"
( 20.32cm )
8"
( 20.32cm )
8"
( 20.32cm )
Water Input Diameter
.5"
( 1.27cm )
.5"
( 1.27cm )
.5"
( 1.27cm )
.75"
( 1.91cm )
.75"
( 1.91cm )
.75"
( 1.91cm )
Air Input Diameter (Hose Barb)
.125"
( 0.32cm )
.125"
( 0.32cm )
.125"
( 0.32cm )
.125"
( 0.32cm )
.125"
( 0.32cm )
.125"
( 0.32cm )
Drain Diameter
1"
( 2.54cm )
1"
( 2.54cm )
1"
( 2.54cm )
1"
( 2.54cm )
1"
( 2.54cm )
1"
( 2.54cm )
Recommended Aquarium Setup
NOTE: Bio load can affect recommendations
Flow Rate Min
150 gal / hr
( 567.81 L / hr )
250 gal / hr
( 946.35 L / hr )
300 gal / hr
( 1135.62 L / hr )
300 gal / hr
( 1135.62 L / hr )
400 gal / hr
( 1514.16 L / hr )
500 gal / hr
( 1892.71 L / hr )
Flow Rate Max
250 gal / hr
( 946.35 L / hr )
350 gal / hr
( 1324.89 L / hr )
400 gal / hr
( 1514.16 L / hr )
400 gal / hr
( 1514.16 L / hr )
550 gal / hr
( 2081.98 L / hr )
700 gal / hr
( 2649.79 L / hr )
Aquarium Min Volume
50 gal
( 189.27 L )
75 gal
( 283.91 L )
125 gal
( 473.18 L )
150 gal
( 567.81 L )
200 gal
( 757.08 L )
350 gal
( 1324.89 L )
Aquarium Max Volume
75 gal
( 283.91 L )
150 gal
( 567.81 L )
200 gal
( 757.08 L )
225 gal
( 851.72 L )
300 gal
( 1135.62 L )
500 gal
( 1892.71 L )
Air Pump Tetra Deepwater AP-150 ( or equivalent )Tetra Deepwater AP-150 ( or equivalent )Tetra Deepwater AP-150 ( or equivalent )Tetra Deepwater AP-150 ( or equivalent )Tetra Deepwater AP-150 ( or equivalent )Tetra Deepwater AP-300 ( or equivalent )
Water Pump Sicce 1.5 ( or equivalent )Sicce 2.0 ( or equivalent )Sicce 2.0 ( or equivalent )Sicce 2.0 ( or equivalent )Sicce 2.0 ( or equivalent )Sicce 2.0, Sicce 3.0 ( or equivalent )
