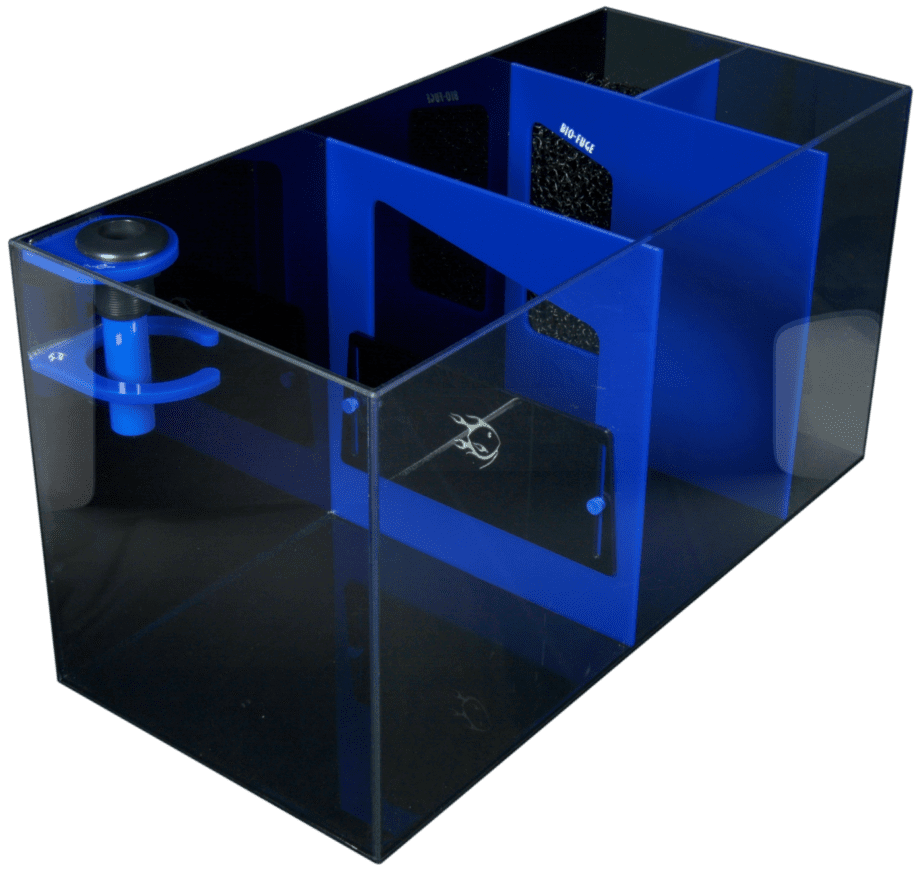

Bio-Fuge Sump 30-14-16
Rimless, simple, and budget-friendly fresh and salt water sump system with 3 sections, for aquariums up to 125 gallons.
Share
Dimensions
L x W x H30-14-16 Technical Specifications
| Identity | |
|---|---|
| Manufacturer | Bashsea |
| Product Line | Bio-Fuge Sumps |
| Product | 30-14-16 |
| Universal Product Code | - |
| Available Styles | Blue Black |
| Physical Properties | |
| Dimensions (L x W x H) |
30 x 14 x 16 in 76.2 x 35.56 x 40.64 cm |
| Weight |
29 lb 13.15 kg |
| Physical Properties (with packaging) | |
| Dimensions (L x W x H) |
34 x 18 x 20 in 86.36 x 45.72 x 50.8 cm |
| Weight |
33 lb 14.97 kg |
| Acrylic Thickness | |
| Top | - |
| Sides |
.25 in .64 cm |
| Baffles |
.25 in .64 cm |
| Bottom |
.25 in .64 cm |
| Properties | |
| Cord Control | - |
| Probe Holders | - |
| Drains |
1 @ diameter of 1 in (2.54 cm) |
| Socks |
1 @ diameter of 4 in (10.16 cm) |
| Dosing Inputs | - |
| Sump Section 1 | |
| Dimensions (L x W) |
13 x 13.5 in 33.02 x 34.29 cm |
| Adjustable Gate | Yes |
| Min Water Height |
5 in 12.7 cm |
| Max Water Height |
9 in 22.86 cm |
| Sump Section 2 | |
| Dimensions (L x W) |
10 x 13.5 in 25.4 x 34.29 cm |
| Adjustable Gate | No |
| Min Water Height | - |
| Max Water Height | - |
| Sump Section 3 | |
| Dimensions (L x W) |
8 x 6.125 in 20.32 x 15.56 cm |
| Adjustable Gate | No |
| Min Water Height | - |
| Max Water Height | - |
30-14-16 Datasheets
Product datasheets are print-friendly .PDF files that contain the technical specifications for the Bashsea product line.
Datasheet for the 30-14-16
Also available is the datasheet containing ALL Bio-Fuge Sump products.
Detailed Info & Features
This information applies to all Bio-Fuge Sump products.
