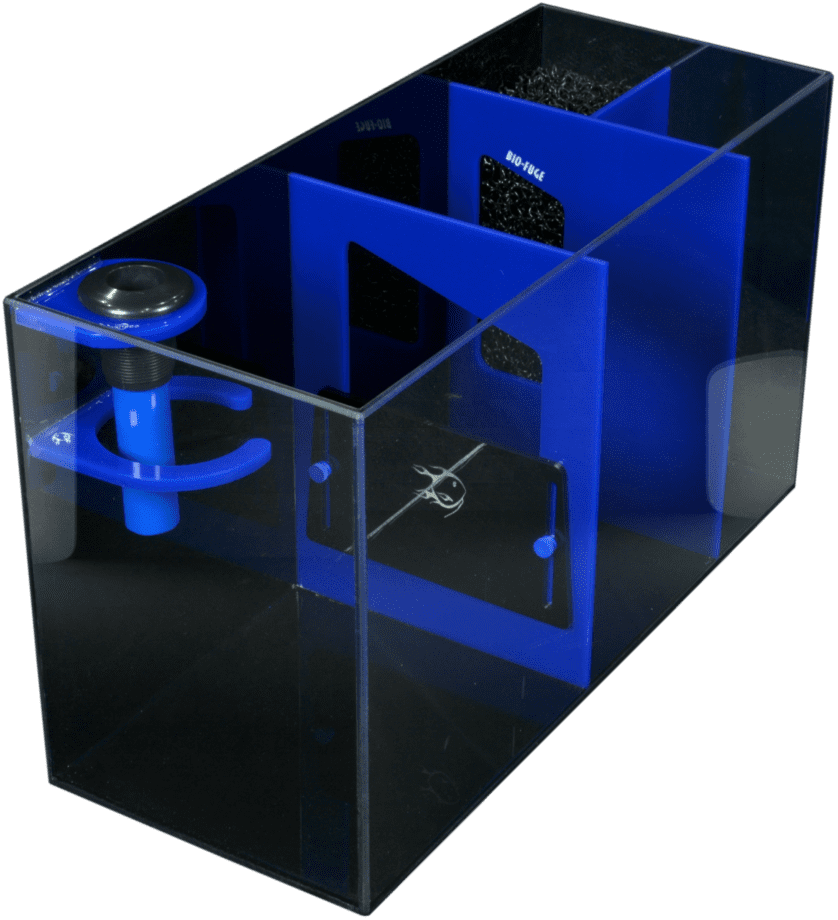

Bio-Fuge Sump 24-10-14
Rimless, simple, and budget-friendly fresh and salt water sump system with 3 sections, for aquariums up to 75 gallons.
Share
Dimensions
L x W x H24-10-14 Technical Specifications
| Identity | |
|---|---|
| Manufacturer | Bashsea |
| Product Line | Bio-Fuge Sumps |
| Product | 24-10-14 |
| Universal Product Code | - |
| Available Styles | Blue Black |
| Physical Properties | |
| Dimensions (L x W x H) |
24 x 10 x 14 in 60.96 x 25.4 x 35.56 cm |
| Weight |
17 lb 7.71 kg |
| Physical Properties (with packaging) | |
| Dimensions (L x W x H) |
28 x 14 x 18 in 71.12 x 35.56 x 45.72 cm |
| Weight |
19 lb 8.62 kg |
| Acrylic Thickness | |
| Top | - |
| Sides |
.25 in .64 cm |
| Baffles |
.25 in .64 cm |
| Bottom |
.25 in .64 cm |
| Properties | |
| Cord Control | - |
| Probe Holders | - |
| Drains |
1 @ diameter of 1 in (2.54 cm) |
| Socks |
1 @ diameter of 4 in (10.16 cm) |
| Dosing Inputs | - |
| Sump Section 1 | |
| Dimensions (L x W) |
10.5 x 9.5 in 26.67 x 24.13 cm |
| Adjustable Gate | Yes |
| Min Water Height |
4 in 10.16 cm |
| Max Water Height |
8 in 20.32 cm |
| Sump Section 2 | |
| Dimensions (L x W) |
7.5 x 9.5 in 19.05 x 24.13 cm |
| Adjustable Gate | No |
| Min Water Height | - |
| Max Water Height | - |
| Sump Section 3 | |
| Dimensions (L x W) |
5 x 5 in 12.7 x 12.7 cm |
| Adjustable Gate | No |
| Min Water Height | - |
| Max Water Height | - |
24-10-14 Datasheets
Product datasheets are print-friendly .PDF files that contain the technical specifications for the Bashsea product line.
Datasheet for the 24-10-14
Also available is the datasheet containing ALL Bio-Fuge Sump products.
Detailed Info & Features
This information applies to all Bio-Fuge Sump products.
Bio-Fuge Sump 24-10-14 Style Gallery
Manufactured in 1 available style.
Blue Black
